TECHNICAL DATA SHEET _19/04/2026

Specifications

Back draft stopper	true
Colour	White
Colour temperature	3000K/4000K/5000K
Cut out size	240mm
Ducting size	125-150mm
Exhaust type	DC
Ip rating	IPX4
Lumen output	1200lm
Minimum installation clearance	210mm
Motor type	DC
Motor wattage	20W

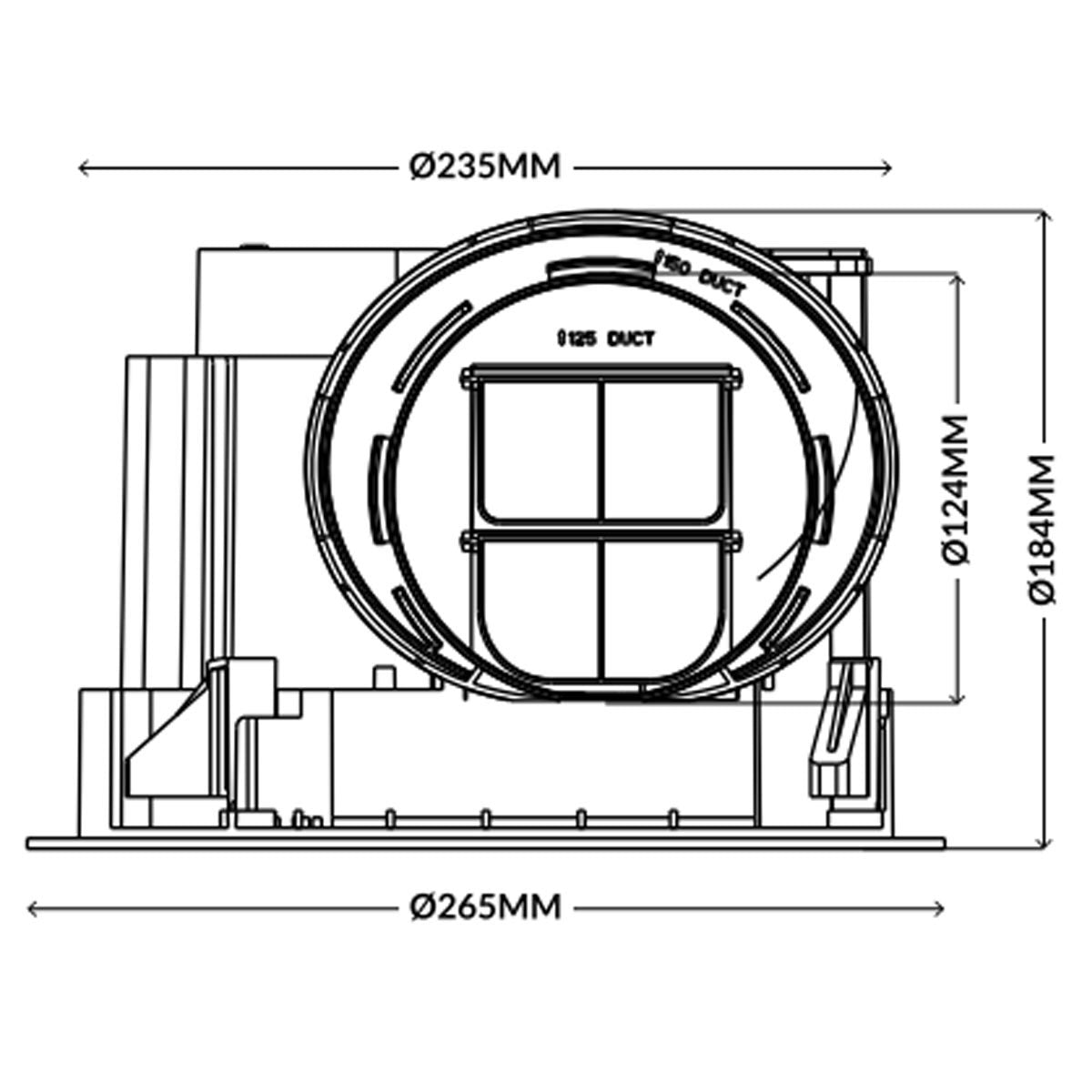

Overall height	184mm
Overall width	265mm
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	12W

Specifications

Back draft stopper	true
Colour	White
Colour temperature	3000K/4000K/5000K
Cut out size	240mm
Ducting size	125-150mm
Exhaust type	DC
Ip rating	IPX4
Lumen output	1200lm
Minimum installation clearance	210mm
Motor type	DC
Motor wattage	20W
Overall height	184mm
Overall width	265mm
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	12W

Features

Equipped with a high-performance DC motor for up to 450m³/h or 600m³/hr airflow.
Includes tri-colour LED light with 3000k, 4000k, and 5000k options.
Features an IPX4 rating for installation above wet showers safely.
Offers selectable cutout sizes of 240mm or 295mm for flexibility.
Available in black or white finishes to suit bathroom decor.
Delivers up to 1200 lumens for bright, energy-efficient illumination.
Easy to install with included 240V plug for convenience.
Effectively removes moisture and odours for a fresh bathroom.
Powered by a 12W LED light supporting adjustable brightness levels.
Backed by a 3-year warranty ensuring reliable long-term use.

Features

Equipped with a high-performance DC motor for up to 450m³/h or 600m³/hr airflow.
Includes tri-colour LED light with 3000k, 4000k, and 5000k options.
Features an IPX4 rating for installation above wet showers safely.
Offers selectable cutout sizes of 240mm or 295mm for flexibility.
Available in black or white finishes to suit bathroom decor.
Delivers up to 1200 lumens for bright, energy-efficient illumination.
Easy to install with included 240V plug for convenience.
Effectively removes moisture and odours for a fresh bathroom.
Powered by a 12W LED light supporting adjustable brightness levels.
Backed by a 3-year warranty ensuring reliable long-term use.

Description

Enhance your bathroom’s comfort with the Vortex DC Exhaust Fan, designed to efficiently remove moisture and odours with a strong airflow capacity of up to 450m³/h or 600m³/hr.

With an IPX4 rating, this fan is suitable for installation above showers, ensuring safety in damp spaces. It features a tri-colour 12W LED light offering adjustable colour temperatures of 3000K, 4000K, and 5000K, providing up to 1200 lumens for versatile lighting options.

Choose between 240mm or 295mm cutout sizes and black or white finishes to match your decor effortlessly. The included 240V plug simplifies installation. Supported by a 3-year warranty, this Vortex fan is a reliable choice tailored for Australian bathrooms. Invest in effective ventilation that improves your daily comfort.

Description

Enhance your bathroom’s comfort with the Vortex DC Exhaust Fan, designed to efficiently remove moisture and odours with a strong airflow capacity of up to 450m³/h or 600m³/hr.

Specifications

Back draft stopper	true
Colour	White
Colour temperature	3000K/4000K/5000K
Cut out size	240mm
Ducting size	125-150mm
Exhaust type	DC
Ip rating	IPX4
Lumen output	1200lm
Minimum installation clearance	210mm
Motor type	DC
Motor wattage	20W
Overall height	184mm
Overall width	265mm
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	12W

Specifications

Back draft stopper	true
Colour	White
Colour temperature	3000K/4000K/5000K
Cut out size	240mm
Ducting size	125-150mm
Exhaust type	DC
Ip rating	IPX4
Lumen output	1200lm
Minimum installation clearance	210mm
Motor type	DC
Motor wattage	20W
Overall height	184mm
Overall width	265mm
Voltage	240V AC
Warranty	3 Year Warranty
Wattage	12W

Downloads

Download the Spec Sheet

Vortex DC Exhaust Fan with LED Light

Vendor: FanForce

$139.90

$139.90 ~~$164.95~~

Tax included. Shipping calculated at checkout.

Cutout: 240mm

240mm 295mm

Colour: White

✔ Available to Order

SKU: VORTEX240-WHLED

Want a better price? Ask for a JD Deal.

Call us (07) 3809 2011 or chat with us below
